2/1 2" Single Wall Heat Shrink Tubing Flexible 3.2mm Diesel Resistant

  • 2/1 2" Single Wall Heat Shrink Tubing Flexible 3.2mm Diesel Resistant
  • 2/1 2" Single Wall Heat Shrink Tubing Flexible 3.2mm Diesel Resistant
Place of Origin China
Brand Name Long
Certification ISO
Model Number 3.2mm-76mm
Minimum Order Quantity 10m
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE Colour Black
Shrink Ratio 2:1 Shrink Ratio Feature Adhesive Semi-rigid
Certificate ISO Continuous Operating Temperature -75°C-150°C
Fully Shrink Temperature 130°C Size 3.2mm
Highlight

2/1 Single Wall Heat Shrink Tubing

,

2" Single Wall Heat Shrink Tubing

,

3.2mm flexible shrink tubing
Leave a Message
Product Description

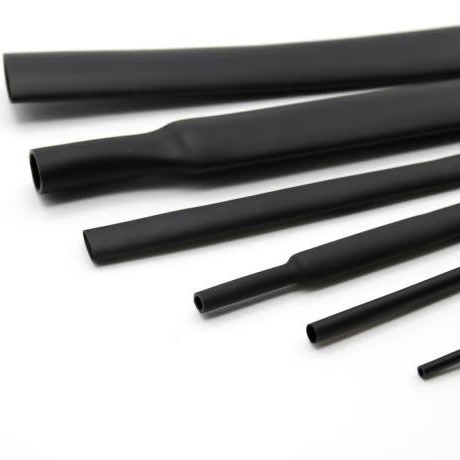

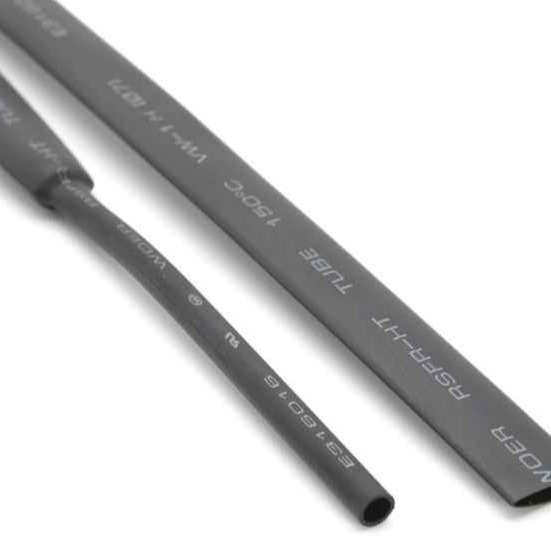

2X Diesel Resistant Flexible Elastomeric Heat Shrink Tubing Protecting Cable



Diesel resistant elastomeric heat shrink tubing for protecting cables, wire harness and brake lines in transportation and military applications where resistance to diesel, oil, hydraulic fluids and other chemicals is critical.



Features

•  2:1 shrink ratio

•  Long term resistance to diesel, hydraulic fluids and chemicals

•  Flexible

•  Flame ratardant

•  High abrasion and cut resistance

•  Continuous operating temperature:-75°C-150°C

•  Fully shrink temperature: 130°C

•  Meets 23053/16



Dimensions



Size Exp landed Recoven md Qfa nHairl Round/Flat
Inch mm

Ir

Di

 iternal ameter Internal Diameter   Wall Thickness widiiucii U Package
      (mm)   (mm)       (mm)

1/8 3.2 3.2 1.6 0.76±0.15 200m/spool Round
3/16 4.8 4.8 2.4 0.84±0.15 100m/spool Round
1/4 6.4 6.4 3.2 0.89±0.15 100m/spool Round
3/8 9.5 9.5 4.8 1.02±0.20 50m/spool Round
1/2 12.7 12.7 6.4 1.22±0.20 25m/spool Round
3/4 19.0 19.0 9.5 1.45±0.28 25m/spool Round
1 25.4 25.4 12.7 1.78±0.28 25m/spool Round
1-1/2 38.1 38.1 19.0 2.41±0.41 25m/spool Round
2 50.8 50.8 25.4 2.79±0.41 25m/spool Round



Technical Data



I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 N10.4 11.5
Elongation(%) ASTM D2671 N250 350
Tensile Strength after aging (MPa) 150°CX168hr >8.0 8.5
Elongation after aging(%) 150°CX168hr >200 300
Dieletric strength(kV/mm) IEC 60243 N11.9 15
Flammability ASTM D2671 B Pass Pass
