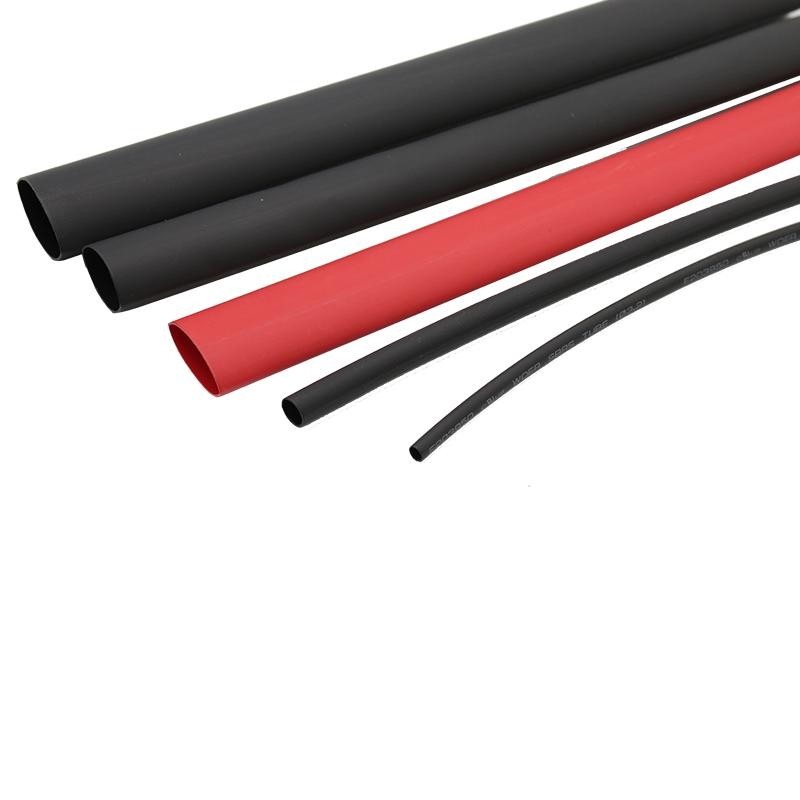

4x 4mm Heat Shrink Tubing Polyolefin 600v Red And Black

  • 4x 4mm Heat Shrink Tubing Polyolefin 600v Red And Black
Place of Origin China
Brand Name Long
Certification ISO and ROHS
Model Number 5/32 4.0mm
Minimum Order Quantity 1m
Price 0.039USD per meter
Packaging Details Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000per meter day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE Colour Red
Size 5/32(4.0mm) Length Up To You
Packing Roll Application High Temperature
Rated Voltage 600V Shrink Ratio 4:1
Highlight

4x 4mm Heat Shrink Tubing

,

Polyolefin 4mm heat shrink tubing

,

600v red and black heat shrink tubing
Leave a Message
Product Description

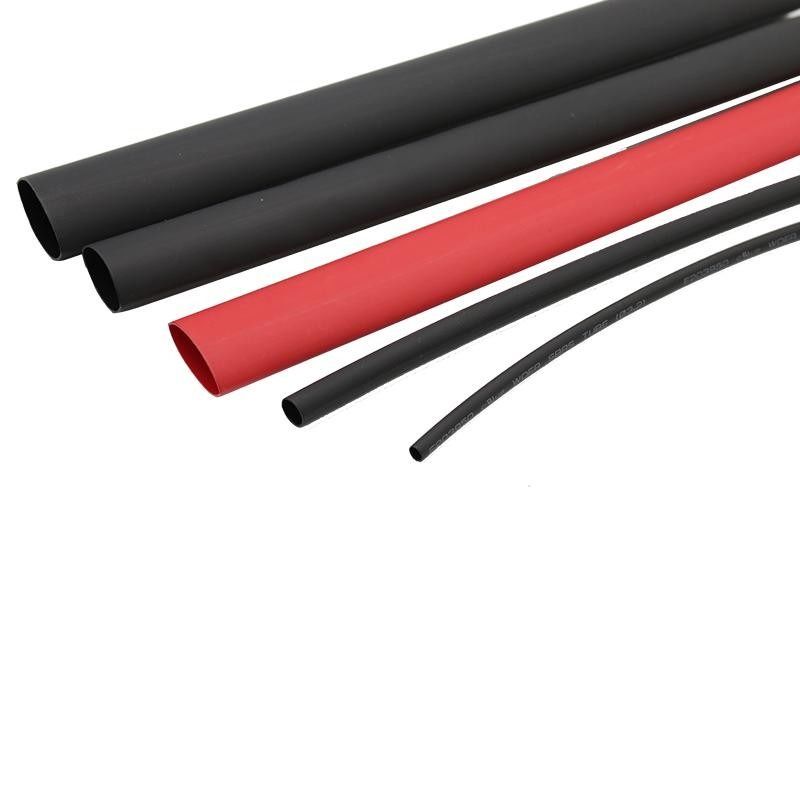

5/32 4.0mm Red Dual Wall Adhesive-Lined Heat Shrink Polyolefin Tubing



Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.



Features

•  4:1 shrink ratio

•  Low longitudinal shrinkage

•  Superior sealing against water, moisture or other contaminants

•  Ideal for connector sealing covering large diameter differences

•  Inner adhesive bonds to plastics, steel and polyethylene

•  Flame retardant( out jacket only)

•  Continuous operating temperature:-45°C-125°C

Fully shrink temperature:^125°C



Dimensions



Size Expanded After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
5/32 4.0 4.0 1.0 1.05±0.30 0.50±0.30 200
1/4 6.0 6.0 1.5 1.15±0.30 0.50±0.30 100
5/16 8.0 8.0 2.0 1.5510.30 0.60±0.30 50
1/2 12.0 12.0 3.0 1.75±0.30 0.60±0.30 1.22OR25M/Roll
5/8 16.0 16.0 4.0 2.00±0.30 0.70±0.30 1.22OR25M/Roll
25/32 20.0 20.0 5.0 2.30±0.40 0.70±0.30 1.22OR25M/Roll
1 24.0 24.0 6.0 2.60±0.40 0.75±0.30 1.22OR25M/Roll
1-1/4 32.0 32.0 8.0 3.00±0.40 0.90±0.30 1.22OR25M/Roll
2 52.0 52.0 13.0 3.35±0.50 0.95±0.30 1.22OR25M/Roll

Technical Data



I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 "10.4 11.5
Elongation(%) ASTM D2671 N300 450
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3 8.5
Elongation after aging(%) UI224 158°CX168hr N200 350
Flammability ASTM D2671B Self-extinguish within 30s Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 N15 17.5
Volume resistivity(Q.cm) IEC 60093 ^1X1014 2.5X1014

Hot Melt Adhesive Property



Property Test Method Standard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm
