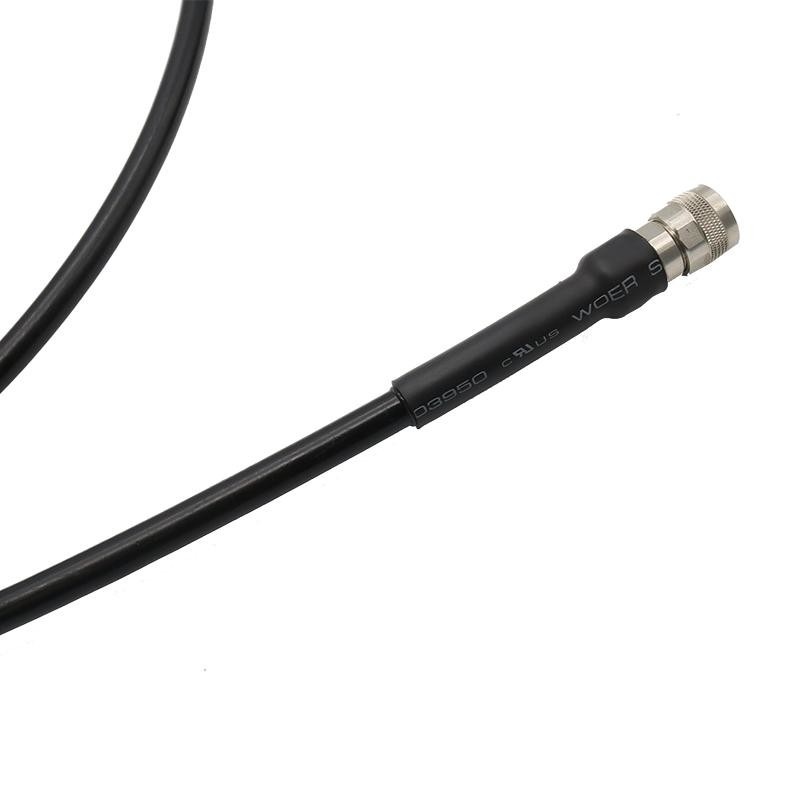

3.2mm Dual Wall Heat Shrink Tube Polyolefin Black 1mm

  • 3.2mm Dual Wall Heat Shrink Tube Polyolefin Black 1mm
  • 3.2mm Dual Wall Heat Shrink Tube Polyolefin Black 1mm
Place of Origin China
Brand Name Long
Certification ISO
Model Number SBRS-(3X,4X)GF
Minimum Order Quantity 10m
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Superior Sealing Against Water, Moisture Or Other Contaminants Material PE
Shrink Ratio 3:1&4:1 Feature Highly Flame Retardant
Continuous Operating -55-135 Fully Shrink Temperature Over 125
Colour Black Wall Dual Wall
Highlight

3.2mm Dual Wall Heat Shrink Tube

,

Polyolefin Dual Wall Heat Shrink Tube

,

black heat shrink tube 1mm
Leave a Message
Product Description

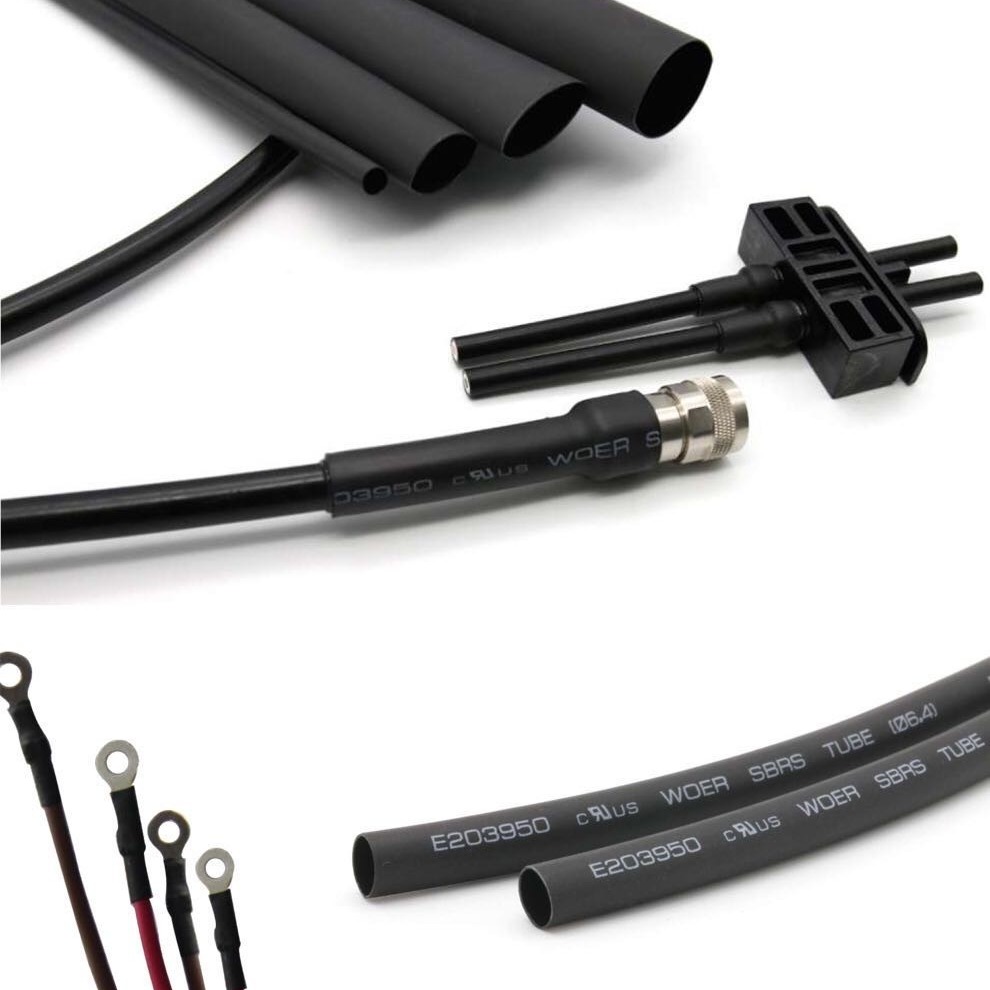

1/8 3.2mm Black Dual Wall Adhesive Lined Cross-Linked Polyolefin Tubing



Adhesive lined heat shrink tubing ideal for applications where both exceptional flame retardancy and environmental sealing capabilities are required.



Features



•  3:1&4:1 shrink ratio

•  Highly flame retardant

•  Superior sealing against water, moisture or other contaminants

•  High shrink ratio allows for coverage of irregularly shaped connectors and components

•  Superior sealing against water, moisture and other contaminants

•  Continuous operating temperature:-55°C-135°C

•  Fully shrink temperature:^125°C

•  Meets MIL-DTL-23053/4



Dimensions

SBRS-(3X)GF

Size Expanded After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Lenath M/spooF
1/8 3.2 3.2 1.0 0.90±0.30 0.40±0.20 200
3/16 4.8 4.8 1.6 1.05±0.30 0.40±0.20 100
1/4 5.4 5.4 2.2 1.25±0.30 0.45±0.20 100
5/16 7.9 7.9 2.7 1.35±0.30 0.45±0.20 100
3/8 9.5 9.5 3.2 1.45±0.30 0.50±0.20 50
1/2 12.7 12.7 4.2 1.650±0.30 0.50±0.20 1.22OR25M/Roll
5/8 15 15 5.2 1.80±0.30 0.55±0.30 1.22OR25M/Roll
3/4 19.1 19.1 6.3 1.95±0.30 0.60±0.30 1.22OR25M/R0II
1 25.4 25.4 8.5 2.00±0.40 0.60±0.30 1.22OR25M/R0II
1-1/4 30 30 10.2 2.15±0.40 0.65±0.30 1.22OR25M/Roll
1-1/2 39 39 13.5 2.45±0.40 0.75±0.30 1.22OR25M/Roll
2 50 50 17.0 2.75±0.40 0.80±0.30 1.22OR25M/Roll



SBRS-(4X)GF



Size Expanded After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm

Adhesive

Thickness mm

 Spool Length M/spool
5/32 4.0 4,0 1.0 1.05±0.30 0.50±0.20 200
1/4 6.0 6,0 1.5 1.15±0.30 0.50±0.20 100
5/16 8.0 8,0 2.0 1.55±0.30 0.60±0.25 50
1/2 12.0 12,0 3.0 1.75±0.30 0.60±0.25 1.22OR25M/R0II
5/8 16.0 16,0 4.0 2.00±0.35 0.70±0.30 1.22OR25M/Roll
25/32 20.0 20,0 5.0 2.30±0.40 0.70±0.30 1.22OR25M/Roll
1 24.0 24,0 6.0 2.60±0.40 0.75±0.30 1.22OR25M/Roll
1-1/4 32.0 32,0 8.0 3.00±0.50 0.90±0.30 1.22OR25M/Roll
2 52.0 52,0 13.0 3.35±0.50 0.95±0.30 1.22OR25M/Roll






Technical Data



Tensile Strength(MPa) ASTM D2671 m12 12.5
Elongation(%) ASTM D2671 XOO 450
Tensile Strength after aging (MPa) MIL-DTL-23053/4 N8.4 8.5
Elongation after aging(%) MIL-DTL-23053/4 ^100 350
Dieletric strength(kv/mm) IEC 60243 M15 17.5
Volume resistivity(Q.cm) IEC 60093 3s1X1014 2.5X1014
