Flame Retardant Medium Wall Adhesive Lined Heat Shrink Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | 10.2mm |
| Minimum Order Quantity | 1m |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wall Thickness | Medium Wall | Colour | Black |
|---|---|---|---|
| Size | 10.2mm | Tensile Strengtn(MPa) | 11.5 |
| Elongation(%) | 450 | Tensile Strengtn After Aging (MPa) | 8.5 |
| Elongation After Aging(%) | 350 | Dieletric Strength(kv/mm) | 17.5 |
| Highlight | Medium Wall Heat Shrink Tubing,Adhesive Lined Heat Shrink Tubing,Flame Retardant Heat Shrink Tubing |
||
Product Description

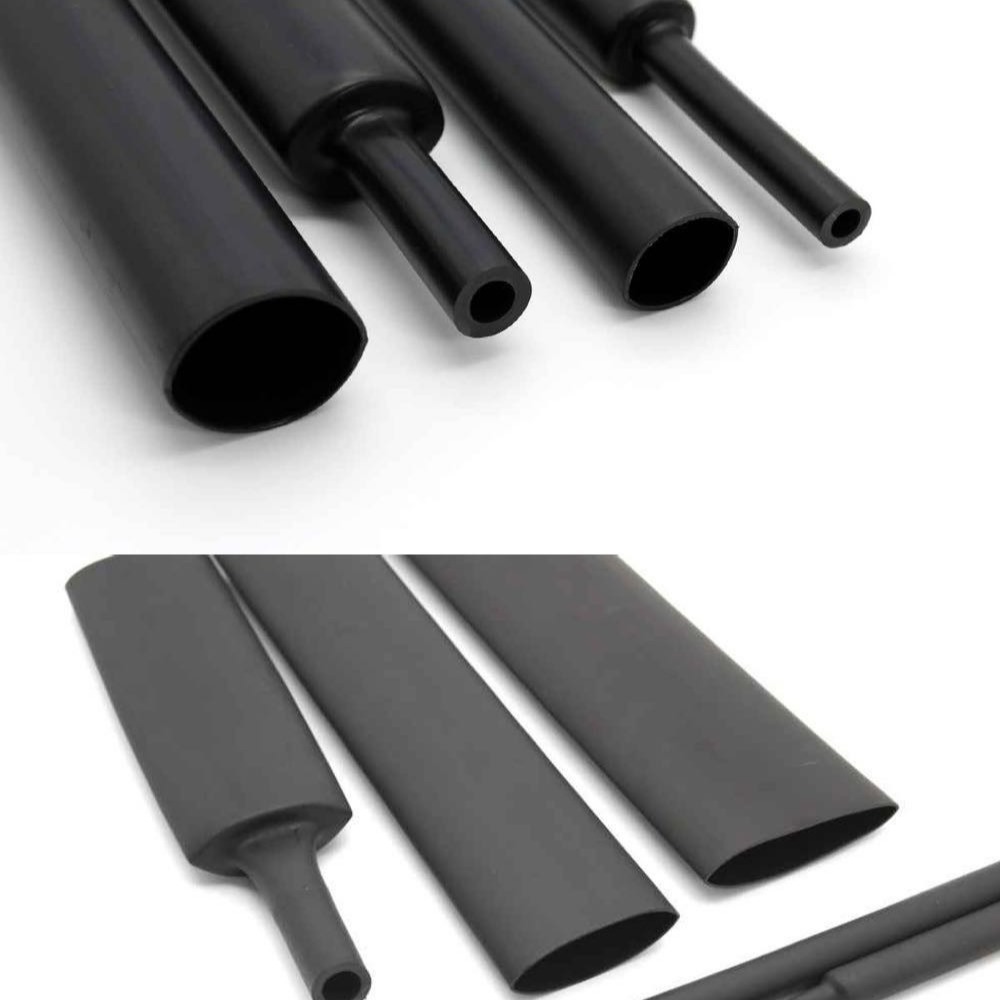

Flame Retardant Medium Wall Adhesive Lined Heat Shrink Tubing
Medium wall adhesive-lined heat Shrink tubing suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important
Features
● Seals and protects cable splices and terminations
● High resistance to impact and abrasion
● Thermoplastic adhesive liner for complete environmental protection and insulation
● Continuous operating temperature:-45℃- 125℃
● Shrinking temperature: 125℃
Dimensions
| Size | Expanded | After Recovery |
Standard Package M/pc |
|||
| Internal Diameter mm | Internal Diameter mm | Jacket Thickness mm | Adhesive Thickness mm | Total Wall Thickness mm | ||
| 10.2/3.0 | 10.2 | 3.0 | 1.35±0.20 | 0.50±0.15 | 1.85±0.25 | 1.22 |
| 16.0/5.0 | 16.0 | 5.0 | 1.40±0.20 | 0.60±0.15 | 2.00±0.25 | 1.22 |
| 19.1/5.6 | 19.1 | 5.6 | 1.70±0.20 | 0.70±0.15 | 2.40±0.25 | 1.22 |
| 25.0/8.0 | 25.0 | 8.0 | 2.00±0.20 | 0.70±0.15 | 2.70±0.25 | 1.22 |
| 28.0/9.0 | 28.0 | 9.0 | 2.00±0.20 | 0.80±0.20 | 2.80±0.25 | 1.22 |
| 35.0/10.2 | 35.0 | 10.2 | 2.00±0.20 | 0.80±0.20 | 2.80±0.25 | .1.22 |
| 38.1/12.0 | 38.1 | 12.0 | 2.00±0.20 | 0.80±0.20 | 2.80±0.25 | 1.22 |
| 43.2/12.7 | 43.2 | 12.7 | 2.10±0.25 | 0.80±0.20 | 2.90±0.25 | 1.22 |
| 52.1/16.0 | 55.0 | 19.0 | 2.10±0.25 | 0.80±0.20 | 2.90±0.25 | 1.22 |
| 63.0/19.0 | 63.0 | 22.0 | 2.20±0.25 | 0.80±0.20 | 3.00±0.25 | 1.22 |
| 75.0/22.0 | 75.0 | 25.0 | 2.90±0.25 | 0.80±0.20 | 3.70±0.25 | 1.22 |
| 85.0/25.0 | 85.0 | 25.0 | 2.90±0.25 | 0.80±0.20 | 3.70±0.30 | 1.22 |
| 95.0/29.0 | 95.0 | 29.0 | 3.10±0.30 | 0.80±0.20 | 3.90±0.30 | 1.22 |
| 115.0/34.0 | 115.0 | 34.0 | 3.10±0.30 | 0.80±0.20 | 3.90±0.30 | 1.22 |
| 140.0/42.0 | 140.0 | 42.0 | 3.30±0.30 | 0.80±0.20 | 4.10±0.30 | 1.22 |
| 160.0/48.0 | 160.0 | 48.0 | 3.30±0.30 | 0.80±0.20 | 4.10±0.30 | 1.22 |
| 180.0/58.0 | 180.0 | 58.0 | 3.30±0.30 | 0.80±0.20 | 4.10±0.30 | 1.00 |
| 200.0/60.0 | 200.0 | 60.0 | 3.30±0.30 | 0.80±0.20 | 4.10±0.30 | 1.00 |
| 230.0/69.0 | 230.0 | 69.0 | 3.30±0.30 | 0.80±0.20 | 4.10±0.30 | 1.00 |
Technical Data
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation(%) | ASTM D2671 | ≥300 | 450 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 350 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Stantard |
| Water Absorption | ASTM D570 | ≤0.2% |
| Sofening Point(℃) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
