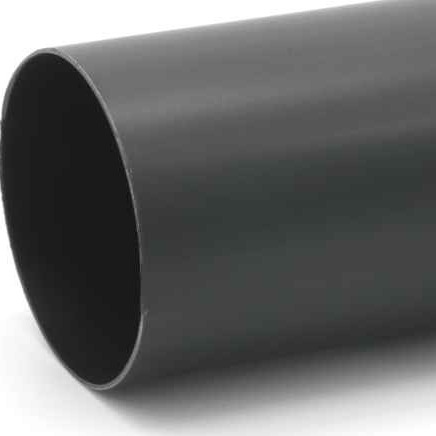

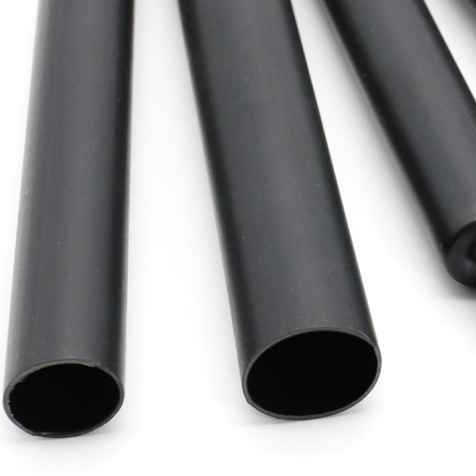

Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing

  • Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing
  • Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 8.0mm
Minimum Order Quantity 1m
Price 0.05
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shrink Ratio 3:1 Colour Black
MOQ 1meter Wall Mediual Wall
Sealing Complete Moisture Sealing Shrinking Temperature 125℃
Feature1 High Resistance To Impact And Abrasion Feature2 Strain Relief For Delicate Wire Connections
Highlight

Medium Wall Heat Shrink Tubing

,

Adhesive Lined Heat Shrink Tubing
Leave a Message
Product Description

Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing



Medium Wall Adhesive-lined Cross-linked Polyolefin Heat Shrink Tubing

Medium wall heat shrinkable tubing suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important.



Features

●  3:1 shrink ratio, not Flame-retardant

●  Seal and protect cable splice and terminations

●  Rugged mechanical protection

●  Complete moisture sealing

●  Strain relief for delicate wire connections

●  High resistance to impact and abrasion

●  Thermoplastic adhesive liner for complete environmental protection and insulation

●  Continuous operating temperature:-45℃- 125℃

●  Shrinking temperature: 125℃

●  RoHS conpliant



Dimensions





Size Expanded After Recovery

Standard Package

M/pc
  Internal Diameter mm Internal Diameter mm Jacket Thickness mm Adhesive Thickness mm Total Wall Thickness mm
6.0/2.0 6.0 2.0 1.40±0.20 0.45±0.10 1.85±0.25 1.22
8.0/2.0 8.0 2.0 1.40±0.20 0.45±0.10 1.85±0.25 1.22
10.2/3.0 10.2 3.0 1.40±0.20 0.50±0.10 1.90±0.25 1.22
12.0/3.0 12.0 3.0 1.40±0.20 0.50±0.10 1.90±0.25 1.22
16.0/5.0 16.0 5.0 1.50±0.20 0.55±0.15 2.15±0.30 1.22
19.1/5.6 19.1 5.6 1.80±0.20 0.60±0.15 2.40±0.30 1.22
22.0/6.0 22.0 6.0 2.00±0.30 0.60±0.15 2.60±0.30 1.22
25.0/8.0 25.0 8.0 2.00±0.30 0.60±0.15 2.70±0.30 1.22
28.0/6.0 28.0 6.0 2.40±0.30 0.95±0.20 3.30±0.35 1.22
33.0/8.0 33.0 8.0 2.50±0.30 0.80±0.15 3.30±0.35 1.22
38.1/12.0 38.1 12.0 2.40±0.30 0.80±0.15 3.30±0.35 1.22
43.2/12.7 43.2 12.7 2.50±0.30 0.80±0.15 3.30±0.35 1.22
55.0/16.0 55.0 16.0 2.50±0.30 0.80±0.15 3.30±0.35 1.22
65.0/19.0 65.0 19.0 2.50±0.30 0.80±0.15 3.30±0.35 1.22
75.0/22.0 75.0 22.0 2.90±0.30 0.80±0.15 3.70±0.40 1.22
85.0/25.0 85,0 25.0 2.90±0.30 0.80±0.15 3.70±0.40 1.22
95.0/30.0 95,0 30.0 3.00±0.30 0.80±0.15 3.80±0.40 1.22
115.0/34.0 115,0 34.0 3.00±0.30 0.80±0.15 3.80±0.40 1.22
140.0/42.0 140,0 42.0 3.00±0.30 0.80±0.15 3.80±0.40 1.22
160.0/50.0 160,0 50.0 3.10±0.30 0.80±0.15 3.90±0.40 1.22
180.0/65.0 180,0 65.0 3.10±0.30 0.80±0.15 3.90±0.40 1.00
200.0/69.0 200,0 69.0 3.10±0.30 0.80±0.15 3.90±0.40 1.00
230.0/78.0 230,0 78.0 3.10±0.30 0.80±0.15 3.90±0.40 1.00



Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing 0Technical Data
Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥14 15
Elongation(%) ASTM D2671 ≥400 450
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥12 12.5
Elongation after aging(%) UL224 158℃X168hr ≥300 350
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X1014 2.5X1014



Adhesive





Property Test Method Stantard
Water Absorption ASTM D570 ≤0.2%
Sofening Point(℃) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



Medium Wall Adhesive Lined Cross Linked PE Heat Shrink Tubing 1
