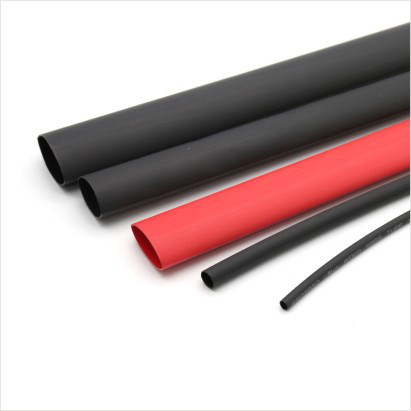

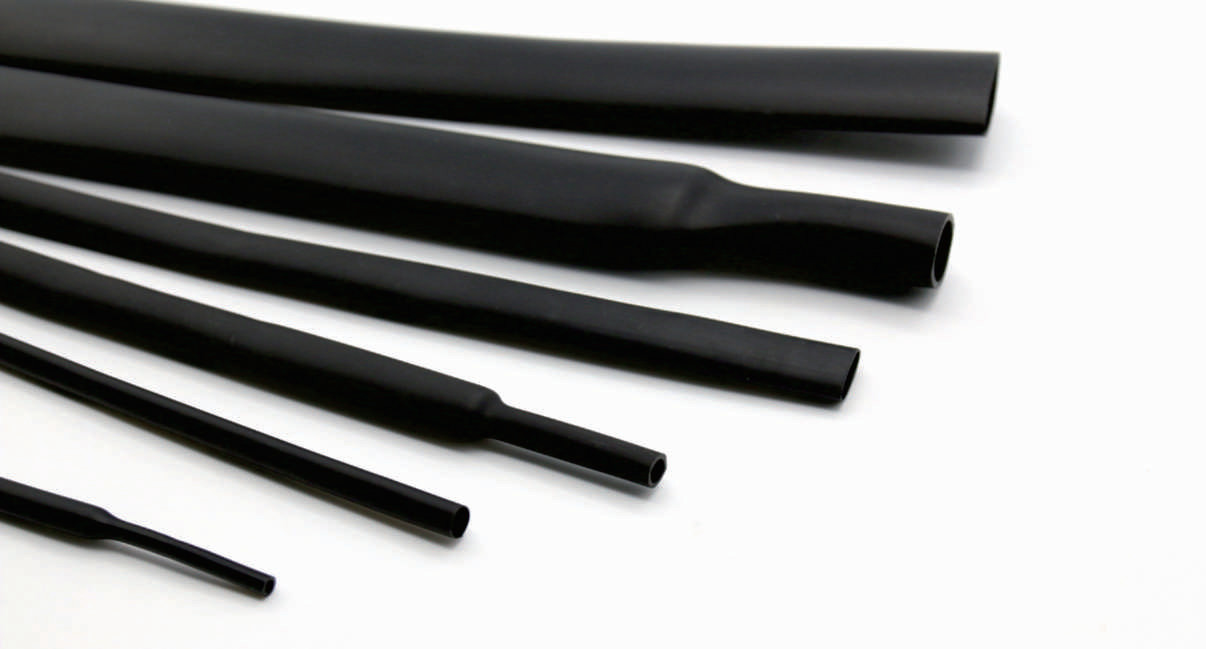

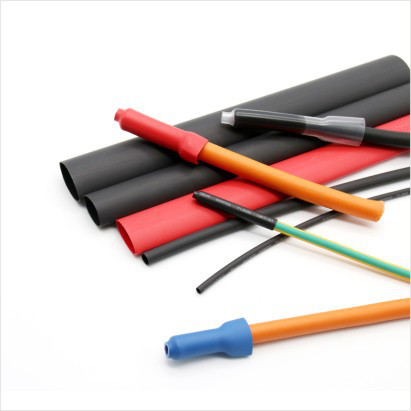

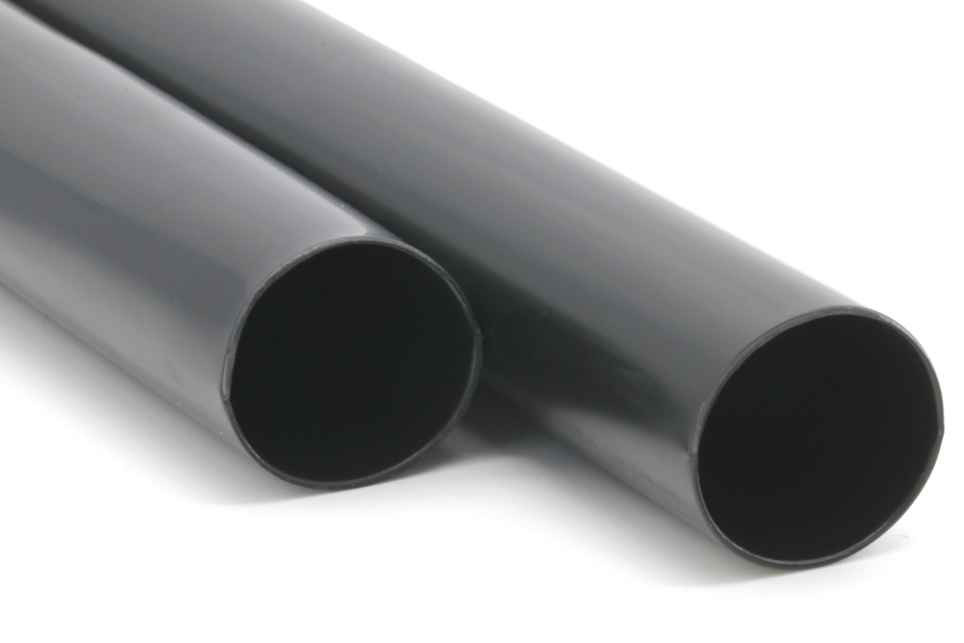

Custom PE Dual Wall Heat Shrink Tube Environmental Sealing

  • Custom PE Dual Wall Heat Shrink Tube Environmental Sealing
  • Custom PE Dual Wall Heat Shrink Tube Environmental Sealing
  • Custom PE Dual Wall Heat Shrink Tube Environmental Sealing
  • Custom PE Dual Wall Heat Shrink Tube Environmental Sealing
Place of Origin China
Brand Name Long
Certification ISO9001
Model Number 9.5mm
Minimum Order Quantity 2m
Packaging Details Roll/Carton
Delivery Time 1-8days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meter per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE Colour Red&Black
Shrink Ratio 3:1 With Glue Feature Flame Retardant
Super Sealing Against Water Fully Shrink Temperature Over 124°C
Used A Wide Variety Of Electrical Applications Used Range Automotive And Marine Wire Harness, Wire Splices, Breakouts And Connector-to Cable
Highlight

PE Dual Wall Heat Shrink Tube

,

custom Dual Wall Heat Shrink Tube

,

environmental sealing Heat Shrink Tube
Leave a Message
Product Description

Flame retardant heat shrink tubing Dual Wall 3x Heat Shrink Tube PE



Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

● 3:1 shrink ratio

● Low longitudinal shrinkage

● Flame retardant (out jacket only)

● Super sealing against water, moisture or other contaminates

● Continuous operating temperature:-45℃- 125℃

● Shrink Temperature:125℃



Demensions:



Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
3/32 2.4 2.4 0.8 0.80±0.30 0.40±0.20 200
1/8 3.2 3.2 1.0 0.90±0.30 0.40±0.20 200
3/16 4.8 4.8 1.6 1.05±0.30 0.40±0.20 100
1/4 6.4 6.4 2.2 1.25±0.30 0.45±0.20 100
5/16 7.9 7.9 2.7 1.35±0.30 0.50±0.20 100
3/8 9.5 9.5 3.2 1.45±0.30 0.50±0.20 50
1/2 12.7 12.7 4.2 1.65±0.30 0.50±0.20 1.22OR25M/Roll
5/8 15 15 5.2 1.80±0.30 0.55±0.30 1.22OR25M/Roll
3/4 19.1 19.1 6.3 1.95±0.30 0.60±0.30 1.22OR25M/Roll
1 25.4 25.4 8.5 2.00±0.40 0.60±0.30 1.22OR25M/Roll
1-1/4 30 30 10.2 2.15±0.40 0.65±0.30 1.22OR25M/R0II
1-1/2 39 39 13.5 2.45±0.40 0.60±0.30 1.22OR25M/Roll
2 50 50 17 2.75±0.40 0.75±0.30 1.22OR25M/Roll
5/2 64 64 21 3.05±0.40 0.80±0.30 1.22OR25M/Roll
3 75 75 25 3.05+0.40 1.0510.40 1.22OR25M/Roll
7/2 90 90 30 3.10±0.50 1.05±0.40 1.22OR25M/Roll
4 100 100 34 3.10±0.50 1.05±0.40 1.22OR25M/R0II
5 125 125 42 3.10±0.50 1.10±0.40 1.22OR25M/Roll



Technical Data



I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 W0.4 11.5
Elongation(%) ASTM D2671 M300 450
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3 8.5
Elongation after aging(%) UI224 158°CX168hr N200 350
Flammability ASTM D2671B Self-extinguish within 30s Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 N15 17.5
Volume resistivity(Q.cm) IEC 60093 ^1X1014 2.5X1014



Hot Melt Adhesive Property





Property Test Method Stantard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



Custom PE Dual Wall Heat Shrink Tube Environmental Sealing 0

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
