Red Blue White Yellow Heat Shrink Wire Butt Connectors IP67 Wire Connector Kit

  • Red Blue White Yellow Heat Shrink Wire Butt Connectors IP67 Wire Connector Kit
Place of Origin China
Brand Name Long
Certification ISO
Model Number AWG22-18
Minimum Order Quantity 1piece
Price 0.029
Packaging Details bag/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE+Copper Color Red
Feature Crystal Clear, Semi-rigid, Adhesive Lined Tubing With Integral Solderless Splice Connector Exceptional Clarity For Visual Confirmation Of Seal
Seal& Protects Against Water, Corrosive Compounds, Moisture& Contaminants Tough, Durable Heat Shrink Tubing Resists Abrasion, Crimp Tool Damage& Splitting
Shrink Ratio Shrinks 40% Faster Than Nylon, Preventing. •Inner Adhesive Bonds To Plastics, Rubbers & Metals
Highlight

Heat Shrink Wire Butt Connectors

,

IP67 Wire Connector Kit

,

Yellow PE Wire Butt Connectors
Leave a Message
Product Description

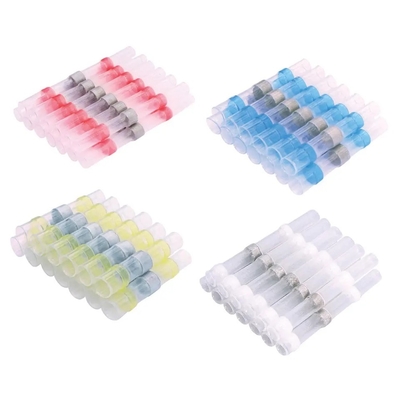

Red Blue White Yellow Heat Shrink Wire Butt Connectors IP67 Wire Connector Kit



Heat Shrink Butt Connectors Terminals, ELECTRAPICK Insulated Waterproof Electrical Wire Terminals Kit Marine Automotive Wire Connectors Crimp Terminals (3 Colors / 3 Sizes)



· Dual-walled design, polyolefin tubing in outside and hot melt adhesive in inside.

· Waterproof : widely used in marine and automobile applications.

· Butt connectors with heat activated adhesive protect against corrosion and vibration

· Crimp connectors have thick copper barrels to tightly grip any wires

· Heat shrink butt connectors use tinned copper barrels for highest conductivity

· 3 Sizes(120pcs): Yellow 12 - 10 AWG (40pcs) Red 22 - 18 AWG (40pcs), Blue 16 - 14 AWG (40pcs)

· 3 Sizes(200pcs): Yellow 12 - 10 AWG (20pcs) Red 22 - 18 AWG (90pcs), Blue 16 - 14 AWG (90pcs)



Dimensions



Code Size Tube Diameter Color Standard Package
  AWG mm2

Expanded

Min(mm)

Recovered

Max(mm)

 Length (mm)
SBRS-DZ-1 22-18 0.5-1.0 4.8 1.2 35.0 red 1000pc/bag
SBRS-DZ-2 16-14 1.5-2.5 5.5 1.4 35.0 blue 1000pc/bag
SBRS-DZ-3 12-10 4.0-6.0 6.5 1.5 42.0 yellow 500pc/bag



Technical Data



I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 >14 16
Elongation(%) ASTM D2671 >300 450
Tensile Strength after aging (MPa) UL224 158°CX168hr >7.3 15
Elongation after aging(%) UI224 158°CX168hr >200 350
Dieletric strength(kV/mm) IEC 60243 >15 17.5
Volume resistivity(Q.cm) IEC 60093 >1X1014 2.5X1014



Adhesive



Property Test Method Standard I
Water Absorption ASTM D570 <0.5%
Sofening Point(°C) ASTM E28 95±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



Red Blue White Yellow Heat Shrink Wire Butt Connectors IP67 Wire Connector Kit 0
